Tial Q BOV 50mm Blow Off Valve with Aluminum Flange, 10psi Spring, and Black Housing QBOV-Black-10psi-AL

SKU: QBOV-Black-10psi-AL
(0)
Backorder - Email for ETA

Item is normally stocked, but zero on hand

On backorder
$259.00
-2% $265.19 $259.00

Got questions?
Feel free to get in touch

Ask an expert

Video chat Chat Email

What the stock status means

In stock — Item is ready to ship
Backorder — Item is normally stocked, but zero on hand
Special Order — Item is made to order and/or not normally stocked

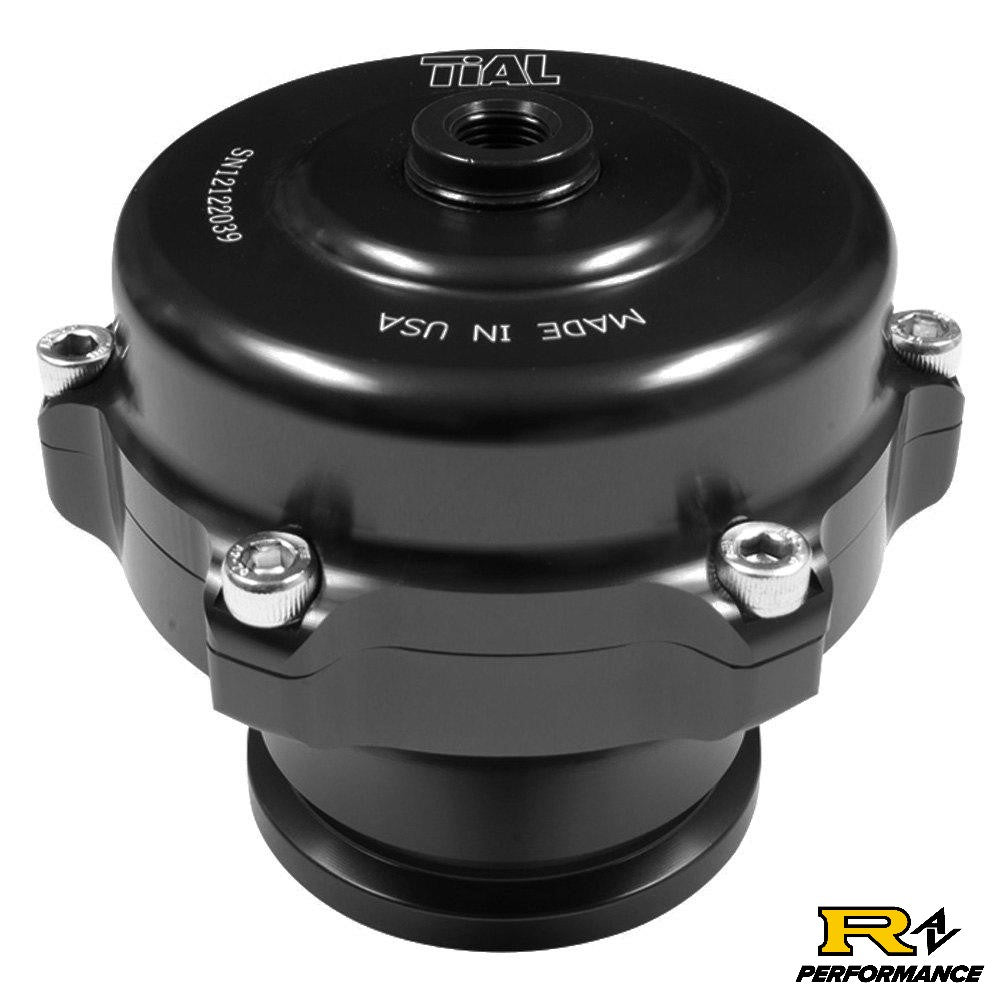

This listing is for the BLACK housing.

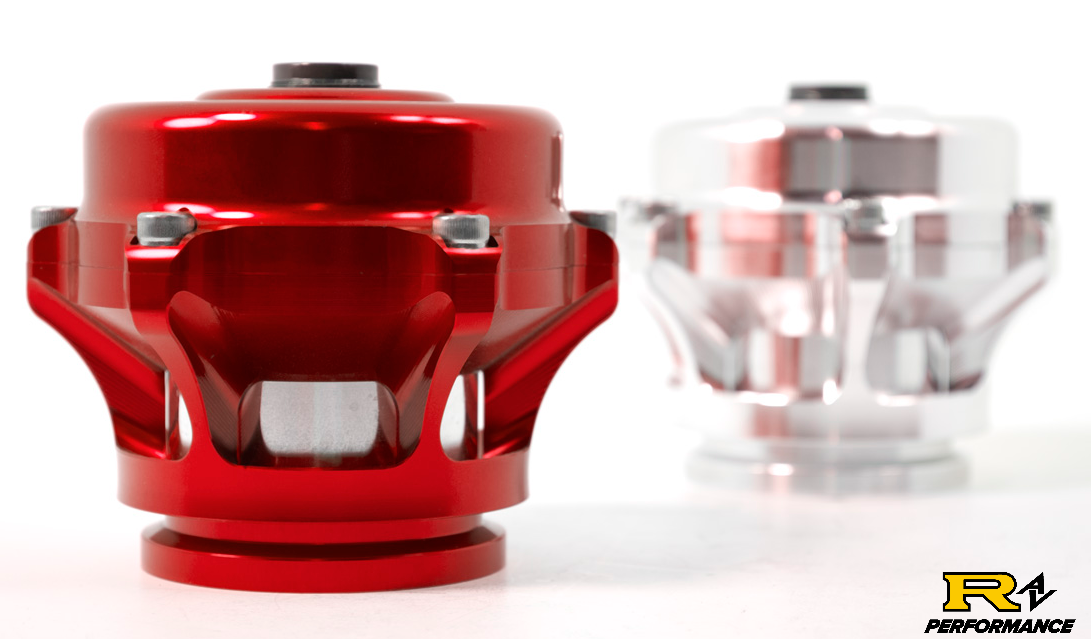

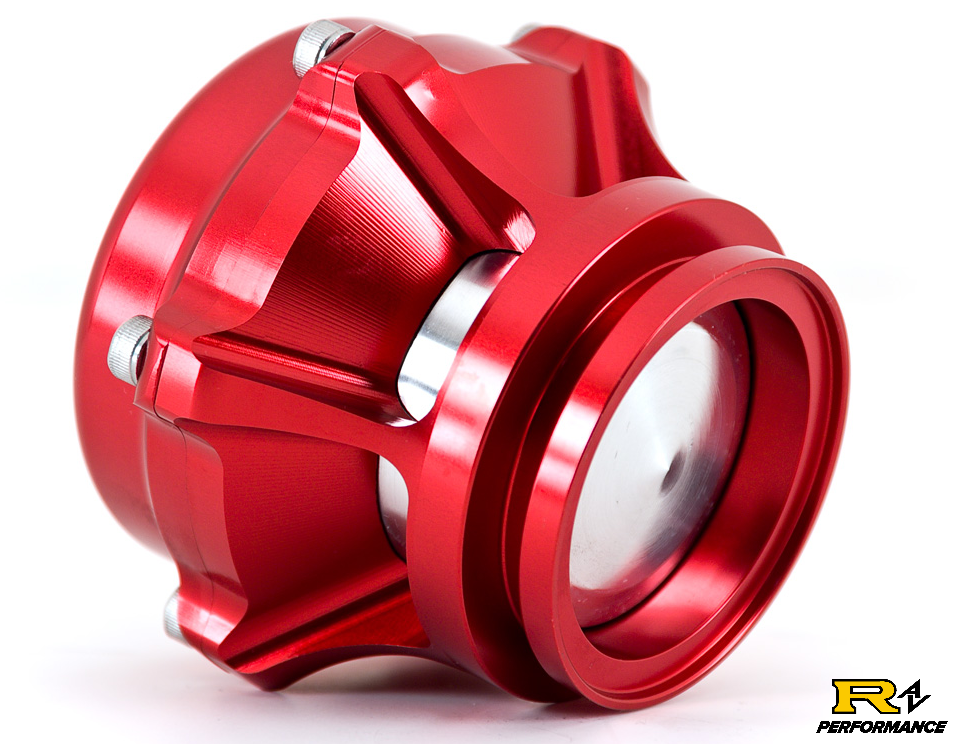

Q is the first revision of the original TiAL BOV. The Q bolts up to any standard TiAL flange, no re-welding.  This is the highest flowing BOV on the market.  It's offered with a variety of springs for different vacuum levels and a special spring specifically for supercharged vehicles

Features

  • For use on turbo-charged and super-charged applications (Paxton, Vortec, etc.). The body and all internal components are CNC-machined from 6061 aluminum alloy. It features a large 1.98 in (50.5mm) valve.
  • The V-Band design aluminum mounting clamp gives a very clean and unique appearance. The clamp uses Stainless Steel hardware for a long-lasting, corrosion-free appearance.
  • The valve seal utilizes a Viton O-ring that is clamped in place to prevent the possibility of sticking to the seat and pulling out. The valve stem and guide are Teflon-lubricated, hard anodize-coated for wear resistance.
  • The Blow Off Valve also comes with our own machined aluminum banjo-type air fitting and bolt, with over sized 10mm hose barb for quick actuator response. The actuator has a high temp silicone Nomex-reinforced diaphragm for long life.
  • An aluminum or mild steel weld base mounting flange is furnished with each unit. Stainless Steel is available at an additional cost. The use of 6061 aluminum allows the housing to be anodized with a selection of colors.
  • Through countless hours of R&D we were able to make the same size valve flow a staggering 60% more than the original design - that means 60% more air is blown off per cycle! This is the highest flowing BOV on the market.
  • Color anodized aluminum options (Silver, Red, Blue, Purple, Black).
  • A single Q BOV can support up to 1,800hp
  • -2psi spring for supercharged applications

Included with every Tial Q:

  • Q Assembly
  • TiAL Vband Clamp
  • Vband Weld Flange
  • TiAL Air Fitting
  • High-Pressure O-ring

Available Colors

  • Red
  • Black
  • Silver
  • Blue
  • Purple
