Link ECU TCC08 8 Channel EGT to CAN Module

SKU: 101-0388
(0)
In stock
Usually ships within 24 hours
$335.00
Ready to install and hit the road!

All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!

Got questions?
Feel free to get in touch

Ask an expert

Video chat Chat Email 561-601-4550

Link TCC08 8 Channel EGT to CAN module, powered by CANchecked

The TCC08 EGT to CAN module allows you to connect up to eight Type-K thermocouples and send the values via CAN bus and/or monitor them directly on your wireless enabled device.

Type-K thermocouples are suitable for various applications such as measuring exhaust gas temperature (EGT), temperatures before/after the intercooler, turbo housings, cylinder head temperatures, water temperature, oil temperature and more. All measurements are cold junction compensated with a measuring range of 0 to 1250°C in 0.25°C resolution (14bit).

The TCC08 features a four-pin DTM connector for CAN/power and miniature K-sockets. It is pin compatible with Links standard CAN pinout and CAN cables range. CAN 2.0A/B standard is supported with flexible configuration.

Wireless connectivity allows you to configure and update your module via smartphone or PC and query the current temperature and thermocouple status.


Features:

  • 8 x cold junction compensated type-K inputs
  • Four-pin DTM connector & miniature K-sockets.
  • CAN Bus connection to ECU (Pre-Configured for Link ECU)
  • Measuring range from 0 to 1250°C (32 to 2282°F) with 0.25°C resolution
  • Detection of short circuit to ground or if no type-K is connected
  • Standard mini k thermocouple connector
  • Full configuration and monitoring over wireless
  • Adjustable sample frequency up to 100Hz

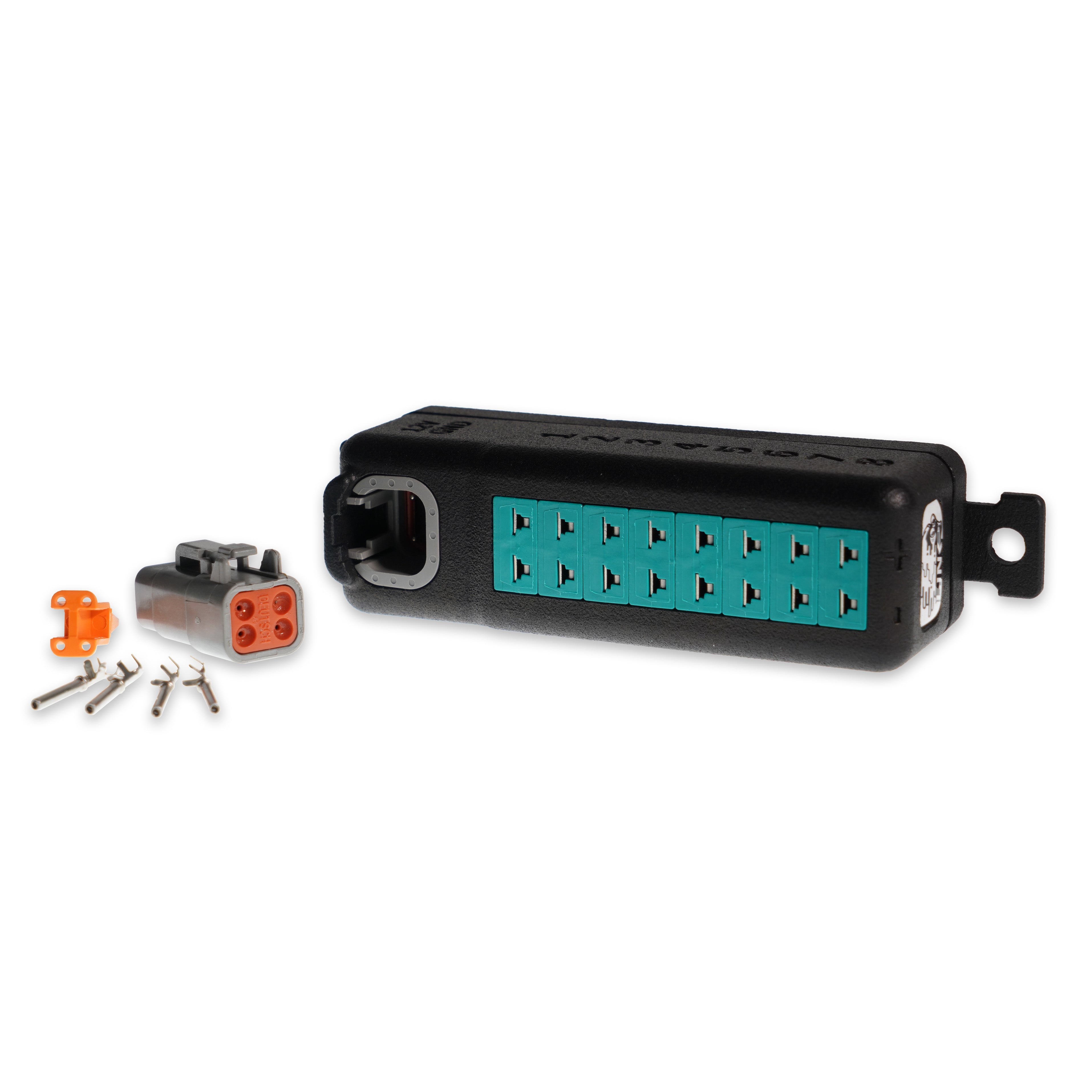

Box Contents:

1 x CAN EGT Module

1 x DTM4 Mating Connector Kit

2 x Link Stickers



Specifications:

  • DTM 4 CAN Pinout (Supports Links CAN pinout schema and CAN cables range)
    Pin 1: 12V Pin 2: Ground Pin 3: Can Low Pin 4: Can High
  • Accuracy: maximum 2% deviation
  • Dimension (L x W x H) – 129 x 31.5 x 34.6mm



Configuration Options:

The module can be configured via wireless:

  • Can Speed: 125kbps, 250kbps, 500kbps, 1Mbps
  • Emulation: Standard, All major aftermarket EGT/Thermocouple to CAN Modules
  • Change of standard Can Bus ID
  • Change Big/Little Endian

Set-up and Installation Guide
