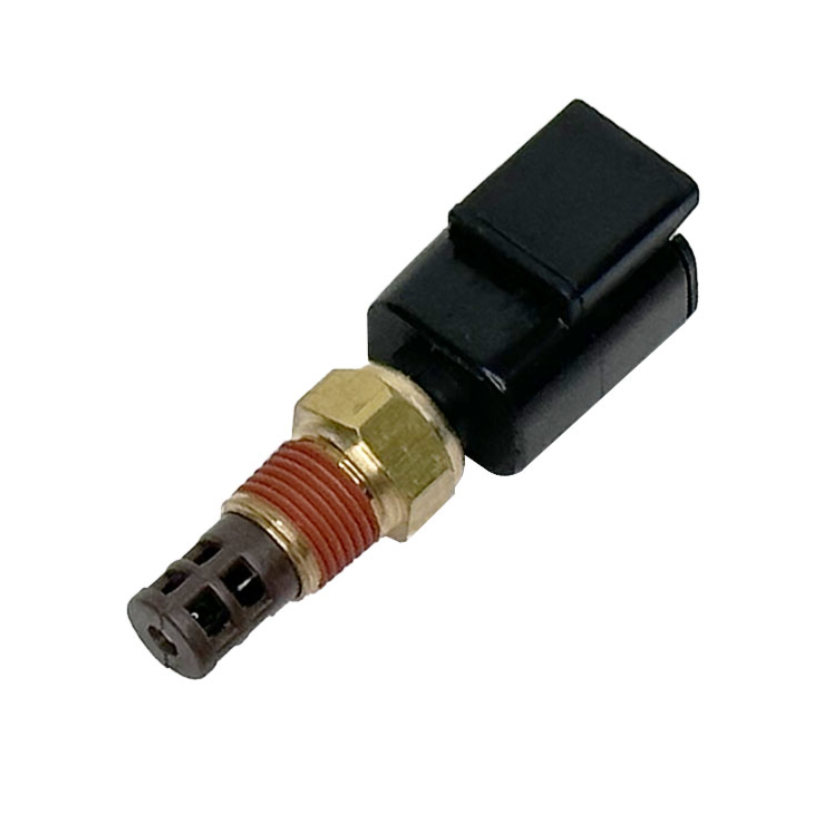

RaceGrade DTM Air Temp Sensor
Regular price
$55.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert
What the stock status means
In stock
— Item is ready to ship
Backorder
— Item is normally stocked, but zero on hand
Special Order
— Item is made to order and/or not normally stocked
Thread: 1/8 NPT
The RG.SN.5012 is an NTC (Negative temperature coefficient) temperature sensor. The resistance of the sensor element decreases with increasing air temperature. It is designed to be used in air and is not recommended to be used for fluid temperature. It is an unpowered sensor and therefore requires that the input line is pulled up, so that the resistance change will result in a voltage drop in the input pin. It is generally recommended to connect the sensor to an AT input on a MoTeC device, as these inputs include a 1k pullup to 5V.
