MoTec

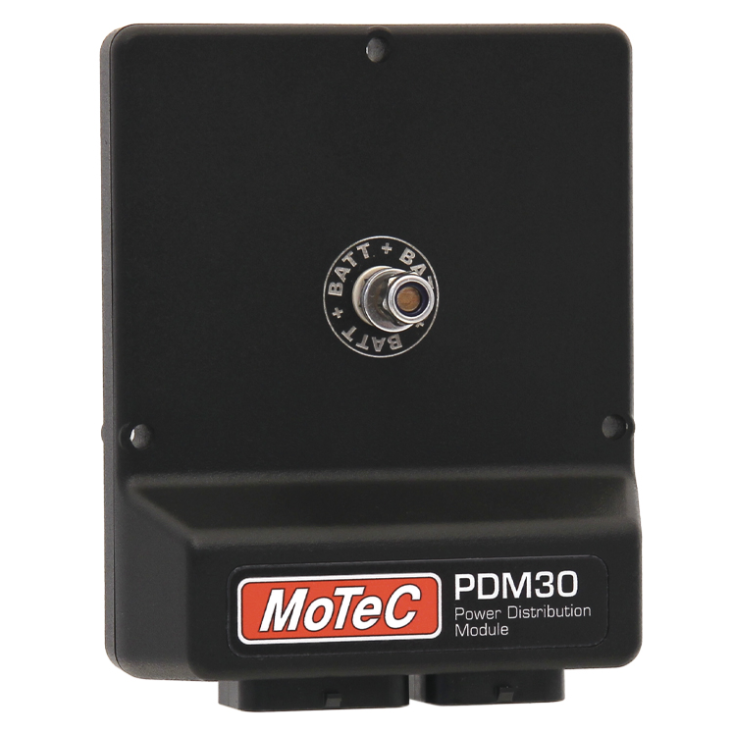

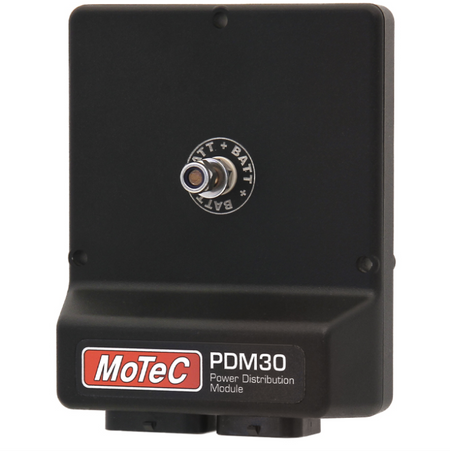

MoTeC PDM30

SKU: M PDM30-retail
(0)
In stock - 50 items available
Usually ships within 24 hours
$3,240.00
Ready to install and hit the road!

All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!

Got questions?
Feel free to get in touch

Ask an expert

Video chat Chat Email 561-601-4550

MoTeC’s new 30 output Power Distribution Module (PDM30) is designed to provide electronically switched power to the various electrical systems in the vehicle such as motors, lights and solenoids, and electronic devices such as ECUs and data acquisition systems.

The module replaces conventional relays, fuses and circuit breakers, simplifying wiring and reducing weight, while increasing reliability.



Outputs:



  • 8 x 20 A outputs—20 A continuous, 115 A transient (typical)
  • 22 x 8 A outputs—8 A continuous, 60 A transient (typical)





Inputs:



  • 16 x Switch inputs





Communications:



  • 1 x CAN





Diagnostic Information:



  • Output current and voltages
  • Input voltages
  • Error status



Case size:



  • 108 x 128 x 39 mm



Weight:



  • 270 grams



Connectors:



  • 1 x 34 pin waterproof connector
  • 1 x 26 pin waterproof connector
  • 1 x M6 stud
