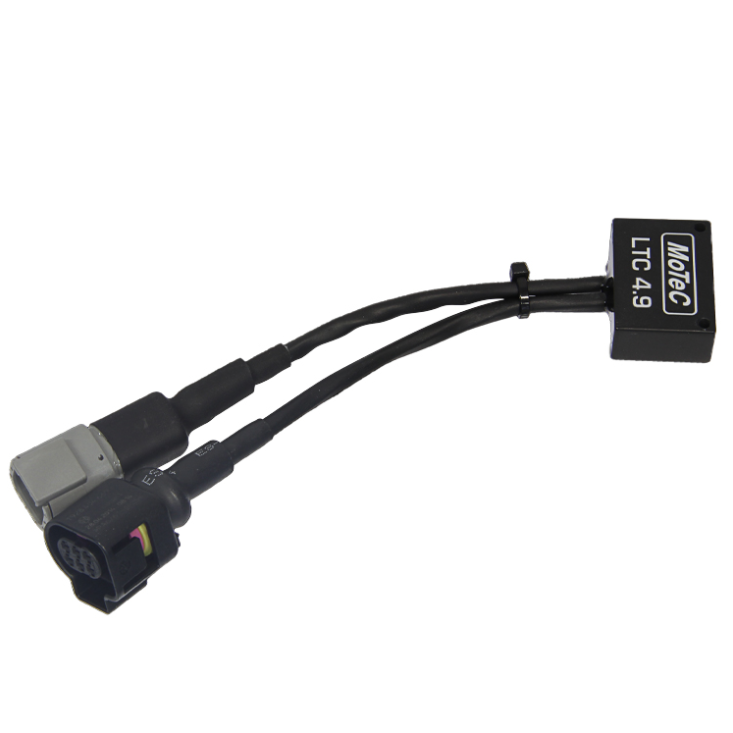

MoTeC Lambda to CAN (LTC)

SKU: M LTC
(0)
In stock - 50 items available
Usually ships within 24 hours
$485.00
Ready to install and hit the road!

All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!

Got questions?
Feel free to get in touch

Ask an expert

Video chat Chat Email 561-601-4550

MoTeC’s LTC (Lambda to CAN) modules monitor, control and diagnose Bosch LSU 4.9 Lambda sensors, transmitting readings on a CAN bus. When multiple LTCs are used, up to 32 Lambda sensors can be configured on a single CAN bus, allowing an ECU or logging device to simultaneously monitor numerous Lambda sensors.



Sensor’s compatibility:



  • Bosch LSU 4.9, 5 wire sensor





Inputs/Outputs:



  • 1 x Bosch LSU 4.9 Lambda sensor
  • Power supply voltage 11 V – 16 V
  • Power supply current 110 mA typical plus the sensor heater current (heater current is typically 0.5 A – 1 A and up to 2 A on startup)





Communications:



  • 1 x CAN at 1 Mbit/sec





Connectors:



  • 1 x 4 pin male DTM connector (power/CAN)
  • 1 x mating connector for Bosch LSU 4.9 sensor





Physical:

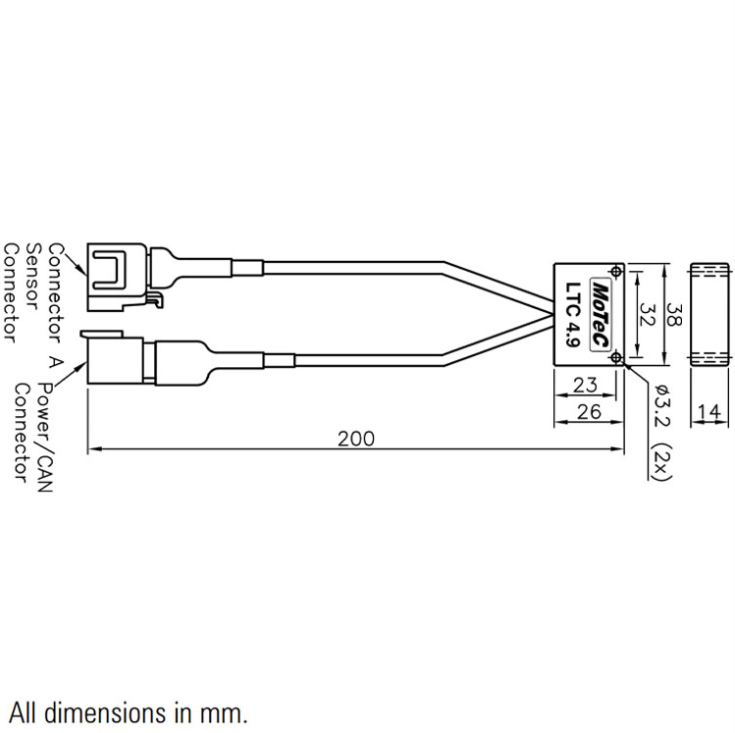

  • Dimensions 38 x 26 x 14 mm excluding wiring looms and connectors
  • Weight 62 grams
  • Maximum ambient temperature 100 °C
