ICON 22-24 Toyota Tundra 6in Stage 5 Suspension System - Billet UCA
Regular price
$9,687.74
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert
What the stock status means
In stock
— Item is ready to ship
Backorder
— Item is normally stocked, but zero on hand
Special Order
— Item is made to order and/or not normally stocked

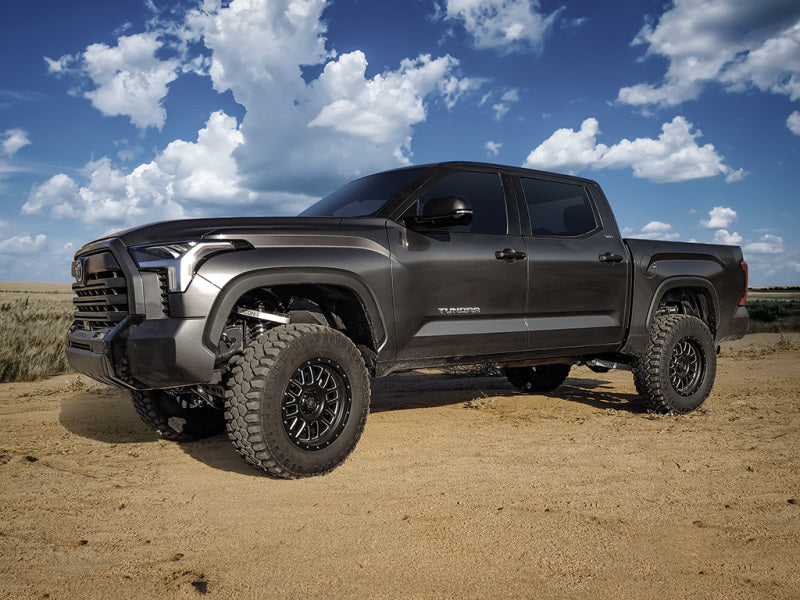

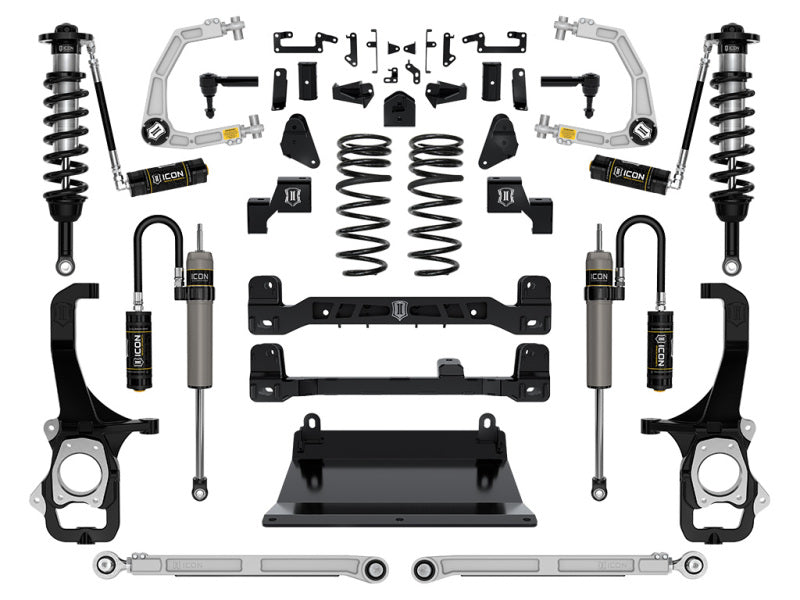

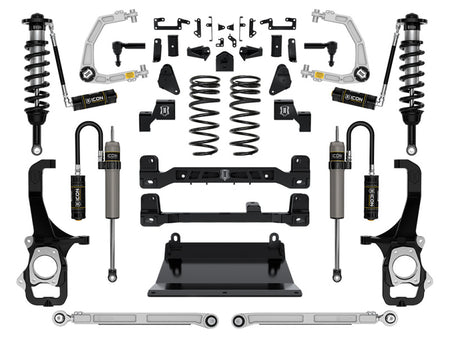

The ICON Vehicle Dynamics Stage 5 6" Suspension System represents the pinnacle of performance and capability for the 2022-2026 Toyota Tundra, combining race-inspired suspension technology with advanced geometry and heavy-duty components engineered for the most demanding environments. Vehicle-specific tuned 2.5 Series front coilovers and rear shocks with remote reservoirs deliver exceptional damping control, increased fluid capacity, and improved heat dissipation for consistent performance during extended high-load off-road use. The system provides up to a 40% increase in front wheel travel over stock without overstressing OE components and features adjustable front ride heights from 5-6 inches of lift. Through innovative engineering, the system achieves a full 6 inches of front lift with only 4 inches of crossmember drop, maximizing ground clearance while minimizing CV joint angles. Billet aluminum upper control arms equipped with ICON's patented Delta Joint Pro (U.S. Pat. 10,731,700) provide superior strength, exceptional durability, 90 degrees of total articulation, and on-vehicle caster and camber adjustment for precise alignment and optimum drivability. The system maintains factory track width while optimized suspension geometry nearly eliminates the bump steer common to stock Tundras.
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2022-2026 | Toyota | Tundra | 1794 Edition |
| 2022-2026 | Toyota | Tundra | Limited |
| 2022-2026 | Toyota | Tundra | Platinum |
| 2022-2026 | Toyota | Tundra | SR |
| 2022-2026 | Toyota | Tundra | SR5 |
| 2022-2026 | Toyota | Tundra | TRD Pro |
