ICON 2023 Ford F250/F350 (Dsl) 4.5in Stage 1 Suspension System w/ Expansion Packs
Regular price
$3,751.64
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert
What the stock status means
In stock
— Item is ready to ship
Backorder
— Item is normally stocked, but zero on hand
Special Order
— Item is made to order and/or not normally stocked

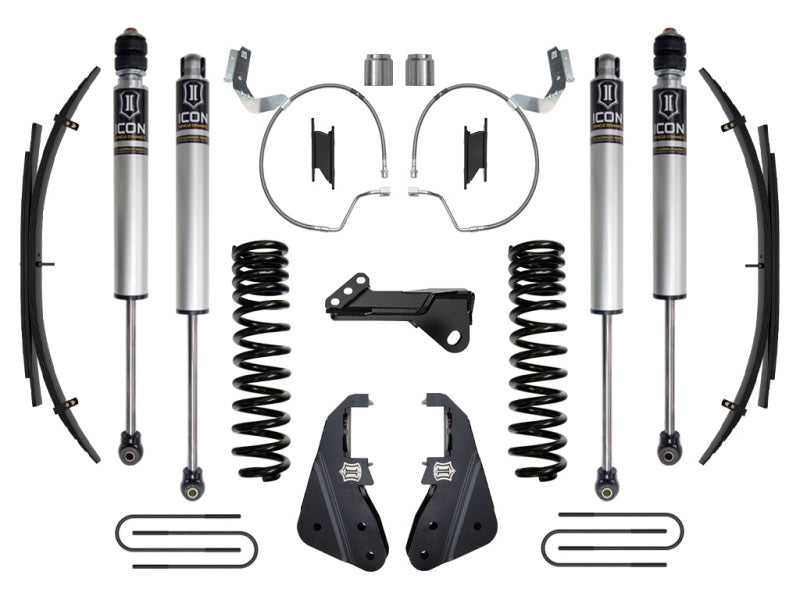

ICON's 4.5" Stage 1 System is comprised of 4.5” lift coil springs optimized for trucks equipped with diesel engines with a dual rate design that allows for a softer initial rate for superb on-road comfort and a firmer secondary rate that increases during compression for excellent bottoming resistance and off-road performance. Fabricated radius arm drop brackets correct suspension geometry and ensure proper wheel alignment with the OE radius arms. The fabricated track bar drop bracket allows the axle to be properly centered under the frame and reduces road feedback throughout the steering system with improved on- and off-road manners thanks to the elimination of bump steer. Leaf spring expansion packs provide 2" of rear lift over stock with improved ride quality and small bump compliance while also reducing axle wrap compared to lift blocks. ICON 2.0 Aluminum Series internal reservoir front and rear shocks feature a vehicle specific tune for improved vehicle handling and excellent ride quality on- and off-road. The included box kit includes fabricated front sway bar drop brackets to prevent bind, heavy-duty aluminum bump stop spacers, and high quality stainless steel extended brake lines.
This Part Fits:
| Year | Make | Model | Submodel |
|---|---|---|---|
| 2023-2026 | Ford | F-250 Super Duty | King Ranch |
| 2023-2026 | Ford | F-250 Super Duty | Lariat |
| 2023-2024 | Ford | F-250 Super Duty | Limited |
| 2023-2026 | Ford | F-250 Super Duty | Platinum |
| 2023-2026 | Ford | F-250 Super Duty | XL |
| 2023-2026 | Ford | F-250 Super Duty | XLT |
| 2023-2026 | Ford | F-350 Super Duty | King Ranch |
| 2023-2026 | Ford | F-350 Super Duty | Lariat |
| 2023-2024 | Ford | F-350 Super Duty | Limited |
| 2023-2026 | Ford | F-350 Super Duty | Platinum |
| 2023-2026 | Ford | F-350 Super Duty | XL |
| 2023-2026 | Ford | F-350 Super Duty | XLT |
