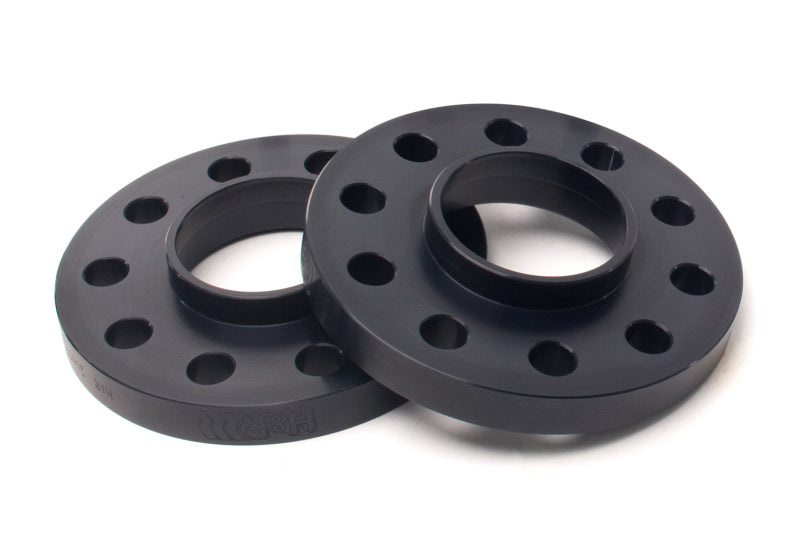

H&R 2019+ Volkswagen Jetta S/SE/SEL/Sport MK7 DR Wheel Spacer Bolts 57.1 CB 5/112 BP 3.0mm Width

SKU: HRS0655577SW
Special Order - Email for lead time

Item is made to order and/or not normally stocked

Special Order - Email for lead time
Regular price $72.63

What the stock status means

In stock — Item is ready to ship
Backorder — Item is normally stocked, but zero on hand
Special Order — Item is made to order and/or not normally stocked

All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a)If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. The bolt head must be identical to the existing bolt: Taper 60: End digit 01 Round head for M12/d24 mm, M14/d28 mm: End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels): End digit 03 Flat head for Porsche original wheels M14 x 1.5: End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).

Installation Instructions
User 1

This Part Fits:

Year Make Model Submodel
2019-2021 Volkswagen Arteon SE
2019,2022-2023 Volkswagen Arteon SE R-Line
2019-2020 Volkswagen Arteon SEL
2019 Volkswagen Arteon SEL Premium
2019-2023 Volkswagen Arteon SEL Premium R-Line
2019-2023 Volkswagen Arteon SEL R-Line
2019-2021 Volkswagen Jetta R-Line
2019-2026 Volkswagen Jetta S
2019-2026 Volkswagen Jetta SE
2019-2026 Volkswagen Jetta SEL
2019-2021 Volkswagen Jetta SEL Premium
2022-2026 Volkswagen Jetta Sport
2022-2025 Volkswagen Taos S
2022-2025 Volkswagen Taos SE
2022-2024 Volkswagen Taos SEL
2018-2024 Volkswagen Tiguan S
2018-2024 Volkswagen Tiguan SE
2020-2024 Volkswagen Tiguan SE R-Line Black
2018-2021 Volkswagen Tiguan SEL
2018-2019 Volkswagen Tiguan SEL Premium
2019 Volkswagen Tiguan SEL Premium R-Line
2019 Volkswagen Tiguan SEL R-Line
2019 Volkswagen Tiguan SEL R-Line Jet Black
2024 Volkswagen Tiguan Wolfsburg Edition
