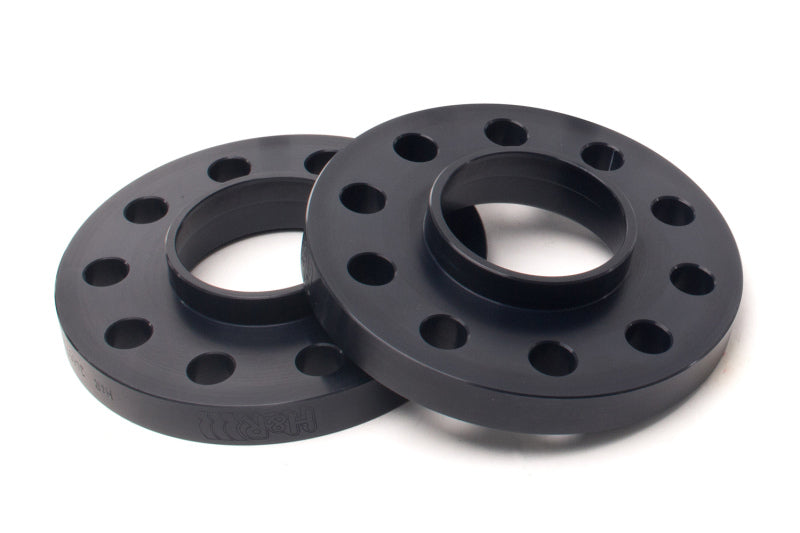

H&R 13-16 Mercedes GL350/GL450/GL550 DR Wheel Spacers 5/112 BP/66.5 CB/14x1.5 Tread Type/18.0mm

SKU: HRS36556650SW
Special Order - Email for lead time

Item is made to order and/or not normally stocked

Special Order - Email for lead time
Regular price $113.93
Regular price -5% $119.95 Sale price $113.93

What the stock status means

In stock — Item is ready to ship
Backorder — Item is normally stocked, but zero on hand
Special Order — Item is made to order and/or not normally stocked

All DR-Systems require longer wheel bolts. These must be ordered separately. H&R Wheel Spacer Bolts are listed here. When ordering wheel bolts, please follow these guidelines: a) If possible, name the brand of wheel. b) New bolts must be longer than the original bolts by the width of the wheel spacer used. c) The bolt head must be identical to the existing bolt: Taper 60 End digit 01 Round head for M12/d24 mm, for M14/d28 mm End digit 02 Round head for M12/d26 mm (e.g. OE VAG-wheels) End digit 03 Flat head for Porsche original wheels M14 x 1.5 End digit 06 d) Safety guidelines (Minimum number of turns for wheel bolts / nuts): M12 x 1.25 = 8.0 turns = approx. 10 mm of load bearing shaft length M12 x 1.50 = 6.5 turns = approx. 10 mm of load bearing shaft length M12 x 1.75 = 6.5 turns = approx. 12 mm of load bearing shaft length M14 x 1.25 = 9.0 turns = approx. 12mm of load bearing shaft length M14 x 1.50 = 7.5 turns = approx. 12 mm of load bearing shaft length 1/2" UNF = 8.0 turns = approx. 11 mm of load bearing shaft length e) Please ensure that the wheel bolts do not damage any part of the brake system (ABS sensors, etc.). Turn the wheel by hand and check clearance on the inside of the hub. The wheel should rotate freely. (Maximum tolerance for some vehicles is only 2mm -- i.e. Rear Axle Mercedes).

Installation Instructions
User 1

This Part Fits:

Year Make Model Submodel
2013-2016 Mercedes-Benz GL350 Bluetec 4Matic
2015-2016 Mercedes-Benz GL450 4Matic
2013-2014 Mercedes-Benz GL450 Base
2013-2016 Mercedes-Benz GL550 4Matic
2013-2016 Mercedes-Benz GL63 AMG Base
2020-2022 Mercedes-Benz GLB250 4Matic
2020-2023 Mercedes-Benz GLB250 Base
2021-2025 Mercedes-Benz GLB35 AMG 4Matic
2017-2018,2020-2024 Mercedes-Benz GLS450 4Matic
2017-2018 Mercedes-Benz GLS550 4Matic
2020-2024 Mercedes-Benz GLS580 4Matic
