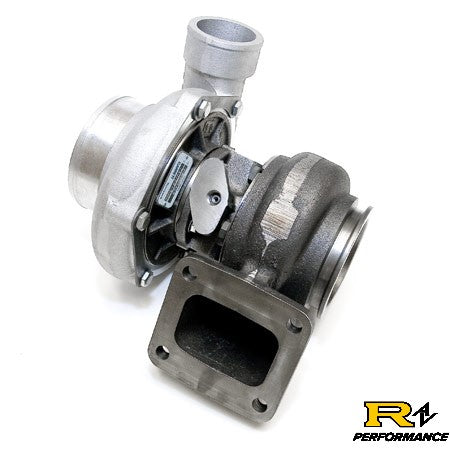

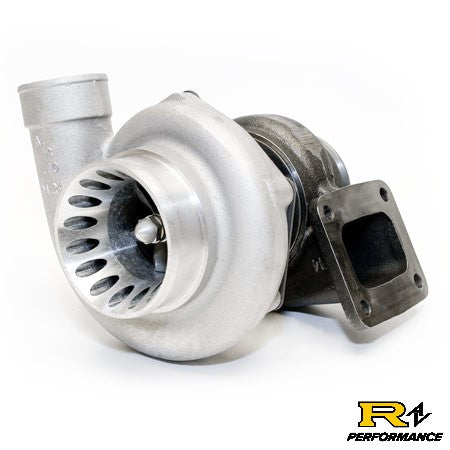

Garrett To4Z Dual Ball Bearing Turbo T4 Undivided .96 AR with 3" V-Band Outlet

SKU: GRT-TBO-055P-96
(0)
Out of stock
$1,589.00
-10% $1,770.00 $1,589.00
Style

Got questions?
Feel free to get in touch

Ask an expert

Video chat Chat Email

What the stock status means

In stock — Item is ready to ship
Backorder — Item is normally stocked, but zero on hand
Special Order — Item is made to order and/or not normally stocked

Dual Ball Bearing Garrett T4Z. 700-750HP potential flow. Compressor wheel diameter is 84mm exd. / 66.7mm ind. (63trim) Compressor housing is .70 A/R has a 4" inlet and 2.5" outlet slip on connection.


TURBINE HOUSING OPTIONS:

  • Undivided T4 with standard 3" V-Band Outlet: .96 A/R
  • Polished Housing (add $75)

    •

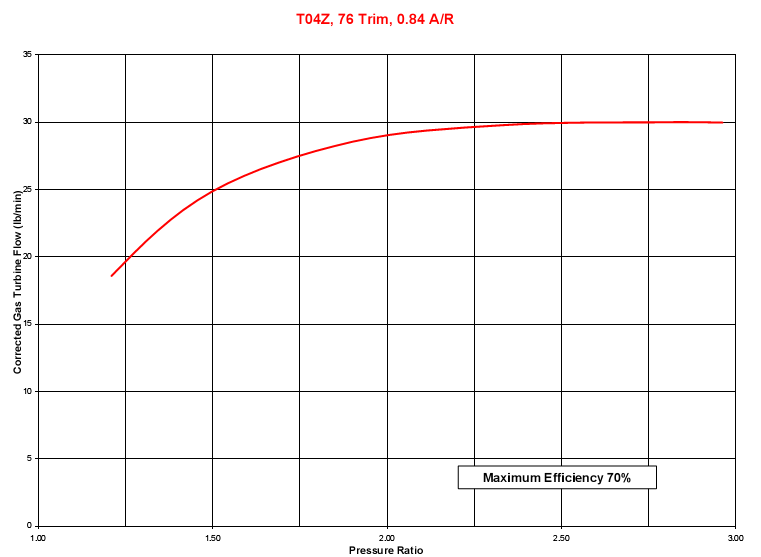

    TURBINE SPECIFICATIONS:

  • Wheel: 74.2mm w/ 76 trim

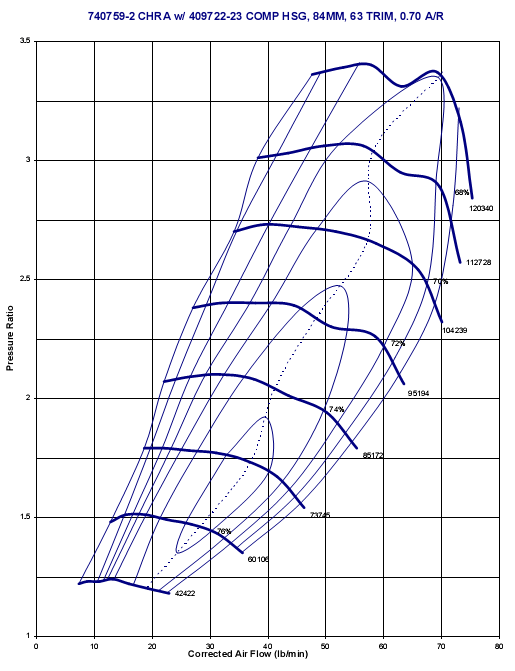

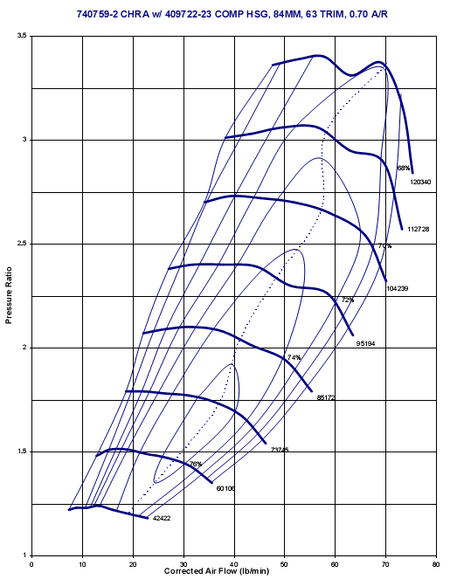

    • COMPRESSOR SPECIFICATIONS
  • Wheel: 84.0mm exd./66.7mm ind w/ 63 trim
  • Housing: 0.70 A/R
    •
