Garrett

Garrett To4Z Ball Bearing Turbo T3 (T31) Inlet; 4 Bolt Outlet .82AR

SKU: GRT-TBO-055-82AR
(0)
Out of stock
$1,589.00
-6% $1,695.00 $1,589.00
Style

Got questions?
Feel free to get in touch

Ask an expert

Video chat Chat Email

What the stock status means

In stock — Item is ready to ship
Backorder — Item is normally stocked, but zero on hand
Special Order — Item is made to order and/or not normally stocked

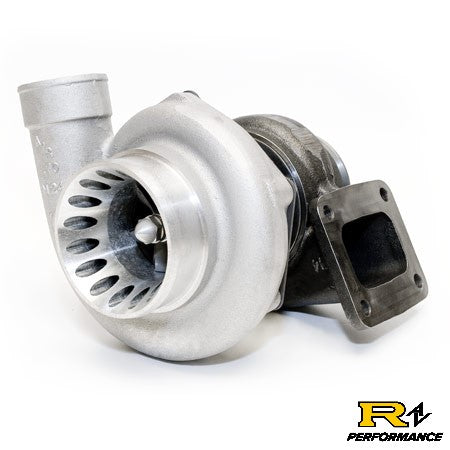

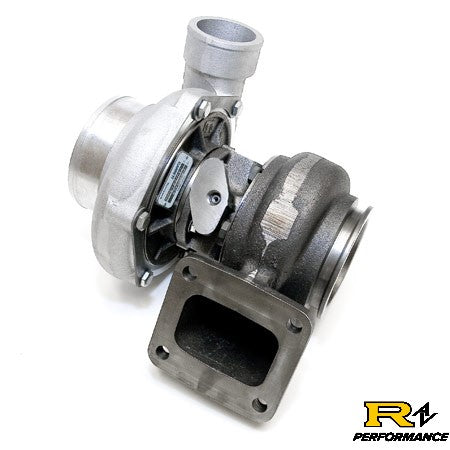

Dual Ball Bearing Garrett To4Z. 700-750HP potential flow. Compressor wheel diameter is 84mm exd. / 66.7mm ind. (63trim) Compressor housing is .70 A/R has a 4" inlet and 2.5" outlet slip on connection.


TURBINE HOUSING OPTIONS:

  • T31 (T3) with 4 bolt outlet: .82 A/R
  • Polished Housing (add $75)

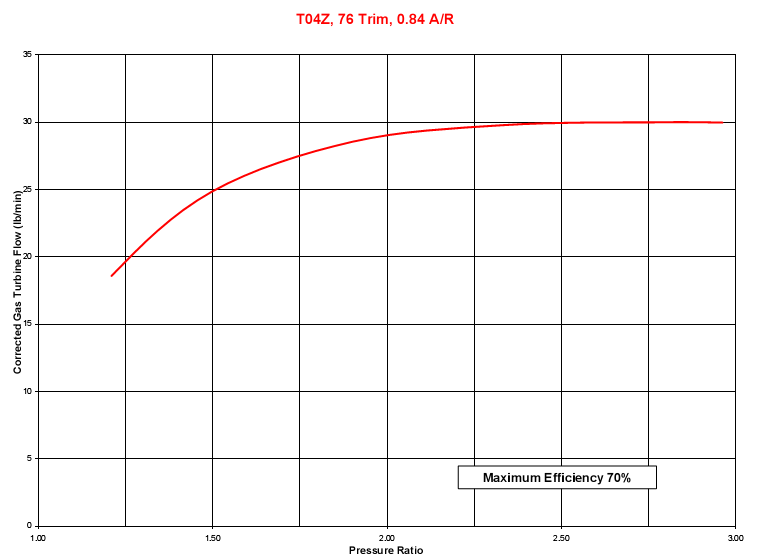

    • TURBINE SPECIFICATIONS:
  • Wheel: 74.2mm w/ 76 trim

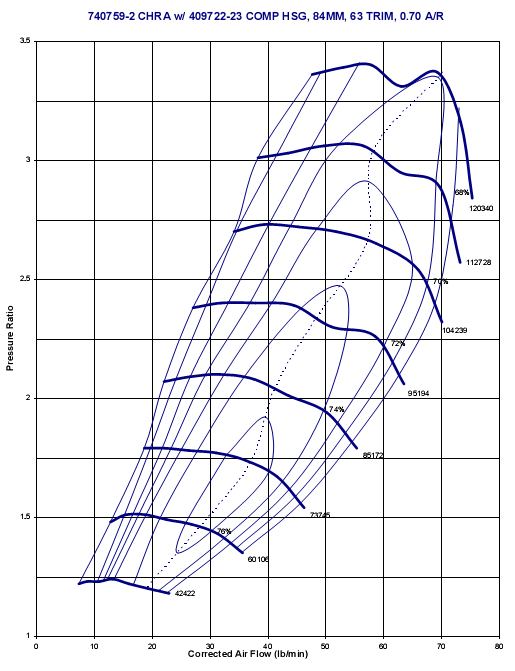

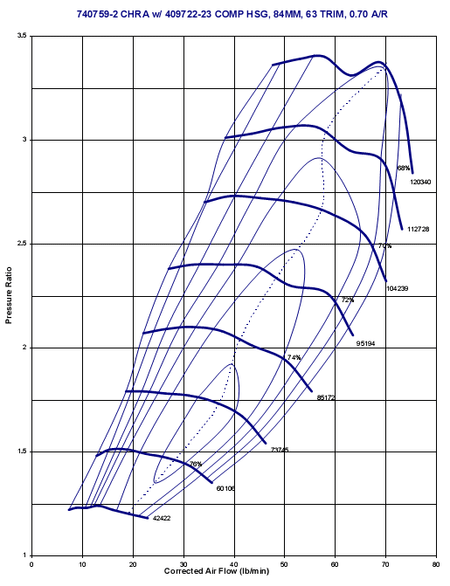

    • COMPRESSOR SPECIFICATIONS
  • Wheel: 84.0mm exd./66.7mm ind w/ 63 trim
  • Housing: 0.70 A/R
    •
