Garrett

Garrett GTX2971R 90 trim .64 A/R 560HP Drop-In Turbo Kit Upgrade for Nissan Silvia S13 S14 S15 or 240SX

SKU: GRT-TBO-506-64AR
(0)
In stock - 2 items available
Usually ships within 24 hours
$1,875.00
Ready to install and hit the road!

All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!

Got questions?
Feel free to get in touch

Ask an expert

Video chat Chat Email +55 555-12345

PRODUCT DESCRIPTION:

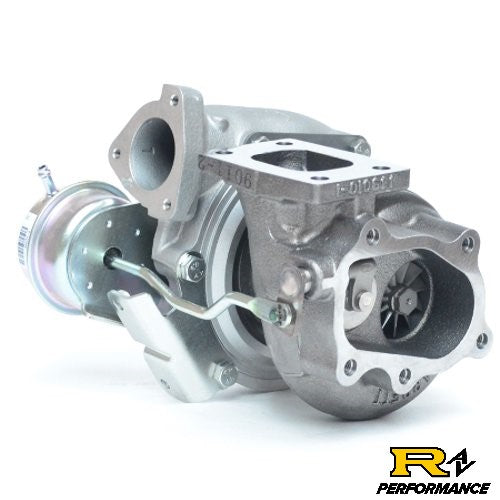

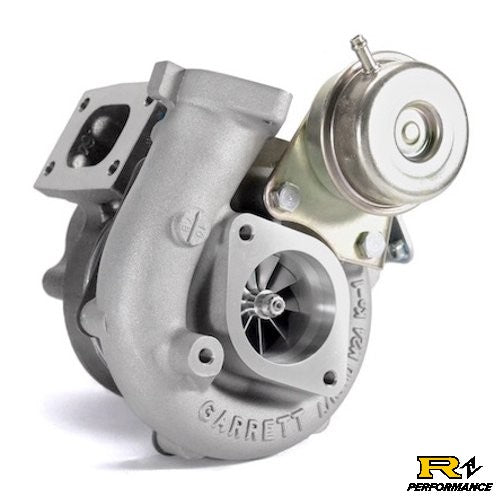

  • New GTX2971R (90 Trim Turbine Wheel) dual ball bearing turbo for Nissan SR20DET platform.
  • Direct drop-in for Nissan SR20DET platforms equipped with an original GT2560R.
  • Includes internally gated T25 flanged turbine housing .64 A/R and internal wastegate actuator (12 to 14PSI).
  • The GTX2971R (90 Trim Turbine Wheel) features an ultra high flow compressor wheel and Garrett 11-Blade technology. 560HP potential flow.



PRODUCT SPECIFICATIONS:

  • Compressor Wheel Inducer: 54.1mm
  • Compressor Wheel Exducer: 71.4mm
  • Compressor Wheel Trim: 58
  • Turbine Wheel Inducer: 56.5mm
  • Turbine Wheel Exducer: 53.6mm
  • Turbine Wheel Trim: 90
  • Nissan SR20DET style compressor housing (2 Bolt Inlet Flange and 3 Bolt Outlet Flange).
  • Internal Wastegate Actuator (12 to 14PSI)

Kit Includes everything you need to bolt turbo onto your SR20DET

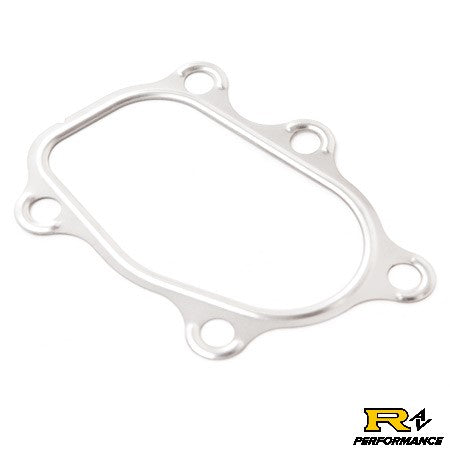

  • 5-Bolt Gasket
  • Inlet Gasket

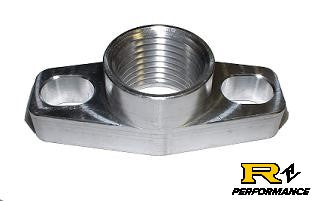

  • Aluminum Oil Drain Flange
  • Oil Drain Gasket
