Garrett

Garrett Gen2 GTX3076R DBB Bolt-On 750hp Turbo Kit w/RB25DET T3 6 bolt exit turbine RB20DET/25DET Skyline R32/33/34

SKU: GRT-TBO-J28
(0)
In stock - 1 items available
Usually ships within 24 hours
$2,225.00
Ready to install and hit the road!

All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!

Got questions?
Feel free to get in touch

Ask an expert

Video chat Chat Email +55 555-12345
Product Description:

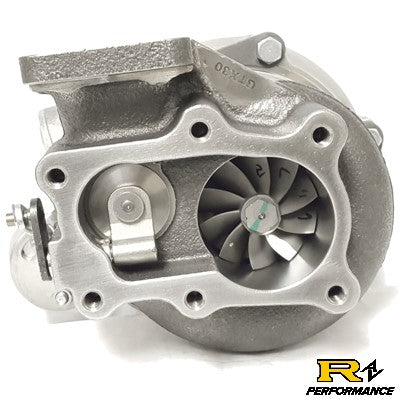

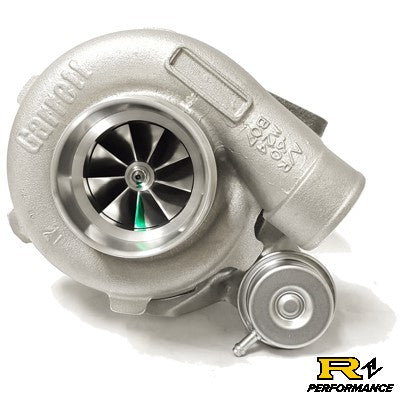

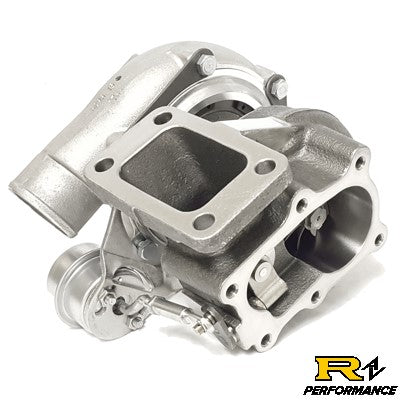

    Garrett GEN2 GTX3076R dual ball bearing turbocharger with RB25DET T3 6 bolt exit turbine housing and compact compressor housing. This is a drop-in ready RB25DET turbo complete with a 1 Bar internal wastegate actuator. Advanced GEN2 billet compressor wheel capable of 750HP!
Product Features:
  • Advanced aerodynamics & ultra high flow Garrett GTX GEN2 compressor wheel
  • Forged billet aluminum compressor wheel
  • Dual ball bearing CHRA rotating assembly
Product Specifications:
  • Compressor Wheel Inducer: 58 mm
  • Compressor Wheel Exducer: 76 mm
  • Compressor Wheel Trim: 58
  • Compressor Housing A/R: 0.60
  • Turbine Wheel Inducer: 60 mm
  • Turbine Wheel Exducer: 55 mm
  • Turbine Wheel Trim: 84
Kit Includes everything you need to bolt turbo onto your RB20DET or RB25DET
  • Coolant in/out
  • Oil feed
  • Oil drain flange
  • Oil drain gasket
