Garrett G35-1050, STANDARD ROTATION, 1.06 A/R DIVIDED T4 INLET W/ 3" VB OUT
Regular price
$2,698.00
Couldn't load pickup availability
Ready to install and hit the road!
All parts come with the essentials you need for a smooth fit and clear instructions. From performance upgrades to custom styling, unbox and get your ride ready with confidence!
Got questions?
Feel free to get in touch
Ask an expert
Product Description:
Product Features:

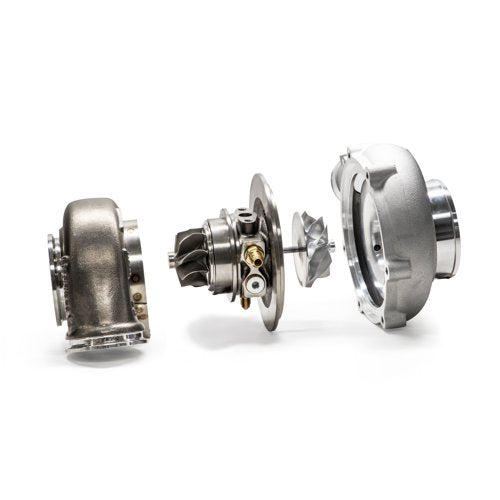

- Garrett® G35-1050 standard rotation turbo assembly kit with 4" inlet and 2.5" outlet compressor housing and 1.06 A/R O/V, DIVIDED T4 (Twinscroll) Entry/V-Band outlet turbine housing.
Product Features:
- New G Series compressor wheel aerodynamics
- Fully machined speed sensor and pressure ports
- Standard and reverse rotation configurations available
- Oil restrictor and water fittings included with purchase
- One piece center housing and backplate for increased durability
- 4 water jacket ports for customizable installation
- Mar-M turbine wheel material rated up to 1050° C | 1922° F
- Stainless steel turbine housings for temperatures up to 1050° C | 1922° F
- Compressor Wheel Inducer: 68mm
- Compressor Wheel Exducer: 84mm
- Compressor Wheel Trim: 65
- Compressor Housing A/R: 0.72
- Turbine Wheel Inducer: 68mm
- Turbine Wheel Exducer: 62mm
- Turbine Wheel Trim: 84

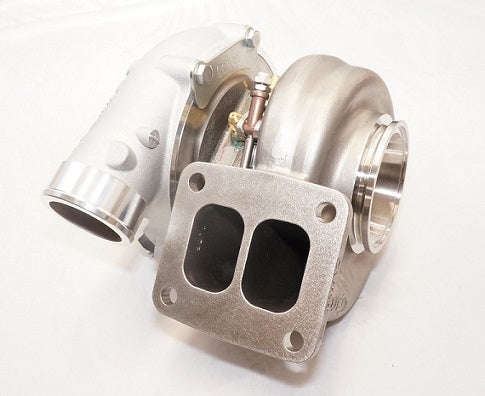

- Turbine Housing Inlet: T4 Divided inlet (same flange size and placement as GTX)
- Turbine Housing Outlet: 3.55 inch (90mm)O.D. w/81mm centering ring V-Band
- Includes Oil Feed (1mm) Restrictor Fitting to -4AN
- Includes two Coolant Fittings to -6AN
