Link ECU E-Throttle Accelerator Pedal Module (PED)
Regular price
$215.00
Couldn't load pickup availability
Got questions?
Feel free to get in touch
Ask an expert
What the stock status means
In stock
— Item is ready to ship
Backorder
— Item is normally stocked, but zero on hand
Special Order
— Item is made to order and/or not normally stocked

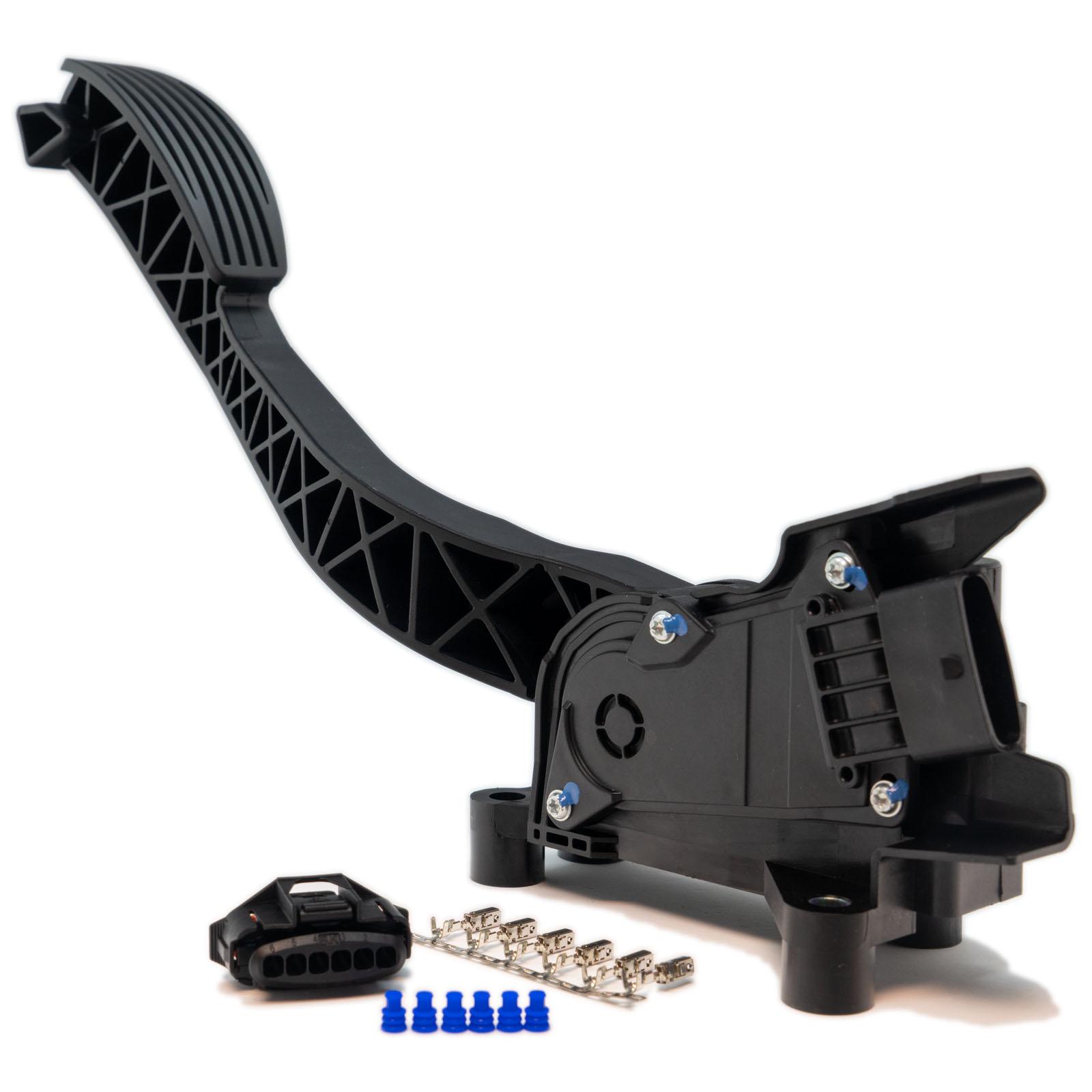

E-Throttle Accelerator Pedal Module
- Firewall mounted hanging design
- 16degree (~70mm) travel
- Redundant dual output potentiometers suitable for use with Electronic throttle bodies
- Includes 6 pin mating connector kit
Technical Specs:
See attached image.
Further details on E-Throttle setup can be found in the PC Link helpfile.
Pin 1 = 5V Pin 2 = 5V Pin 3 = Sensor Ground Pin 4 = AP Main Output Pin 5 = Sensor Ground Pin 6 = AP Sec Output
