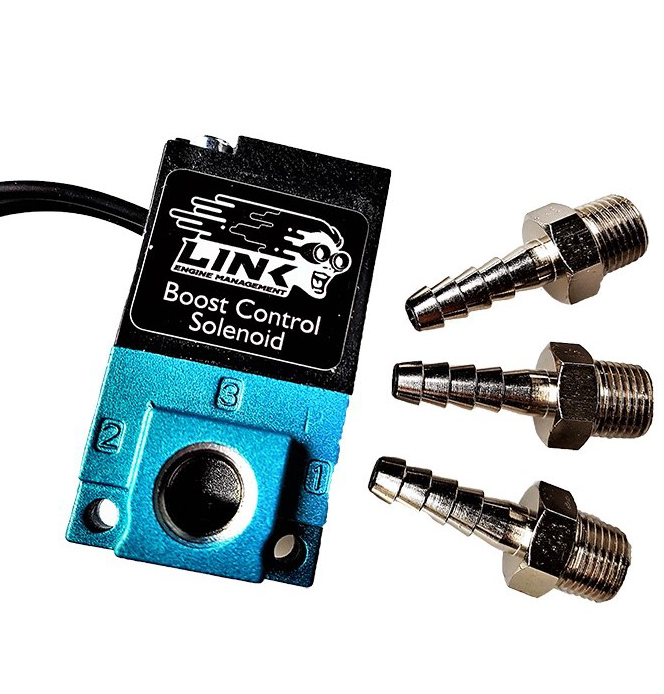

More boost? Of course and this 3 port boost control solenoid will help you do it.
3 port boost control solenoids are the go-to for the majority of boost control applications, they allow for precise control of boost and boost levels can be raised to around 2-3 times the spring pressure of the wastegate.
For higher boost applications consider our 4-Port boost control solenoid.
Features:
- Compatible with all Link ECU’s
- Can be used with single or multiple wastegates (Using T junction)
- Compatible with internal or external wastegates
- Fast and consistent response times
- High shifting forces
- MAC 35 series – Rugged, reliable and long operational life
- Short stroke, high flow
- Balanced poppet, immune to variations of pressure
We recommend starting with a PWM Frequency of 20Hz for this Boost control solenoid. A detailed description of setting up boost control can be found in the help file in our PCLink software which is available for free download.
Specifications:
MAC 35 series
120 PSI max
1/8” BSPPL
12 VDC (5.4W)
18” (45cm) coil leads
Includes 3 x 1/8” BSP hose tail fittings for easy connection
